| Engine | |
|---|---|

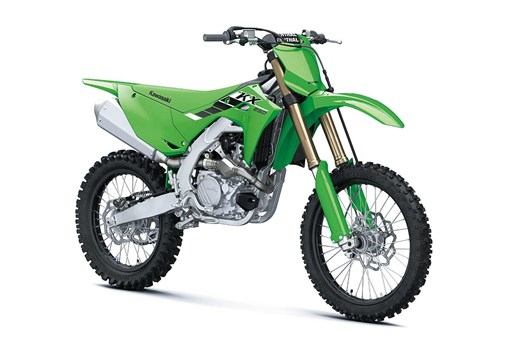

| Model | KX250 |
| Engine Type | 4-stroke, liquid cooled, single cylinder |
| Displacement | 249 cm³ |
| Bore X Stroke | 78.0 x 52.2 mm |
| Compression Ratio | 14.1:1 |
| Valve System | DOHC, 4 valves |
| Fuel System | Fuel injection: ø43 mm x 1 with dual injectors |
| Ignition | Digital DC-CDI |
| Starting | Electric |
| Transmission | 5-speed, return |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Perimeter, aluminium |
| Wheel Travel Front | 314 mm |
| Wheel Travel Back | 316 mm |
| Tyre | |
|---|---|
| Front | 80/100-21 (51M) |
| Rear | 100/90-19 (57M) |
| Suspension | |
|---|---|
| Front | ø48 mm inverted telescopic fork with adjustable compression and rebound damping |
| Rear | New Uni-Trak with adjustable dual-range (high/low speed) compression damping, adjustable rebound damping and adjustable preload |
| Brakes | |
|---|---|
| Front | Single semi-floating 270 mm semi-floating petal disc with dual piston caliper. |
| Rear | Single 250 mm petal disc with single piston caliper. |
| Dimensions | |
|---|---|
| L x W x H | 2,180 x 820 x 1,265 mm |
| Wheelbase | 1,485 mm |
| Ground Clearance | 335 mm |
| Seat Height | 950 mm |
| Curb Mass | 107.5 kg (includes full fuel tank, all fluids at optimum levels) |
| Fuel Capacity | 6.2 litres |
| Performance | |
|---|---|
| Colour/s | Lime Green |
