| Engine | |
|---|---|

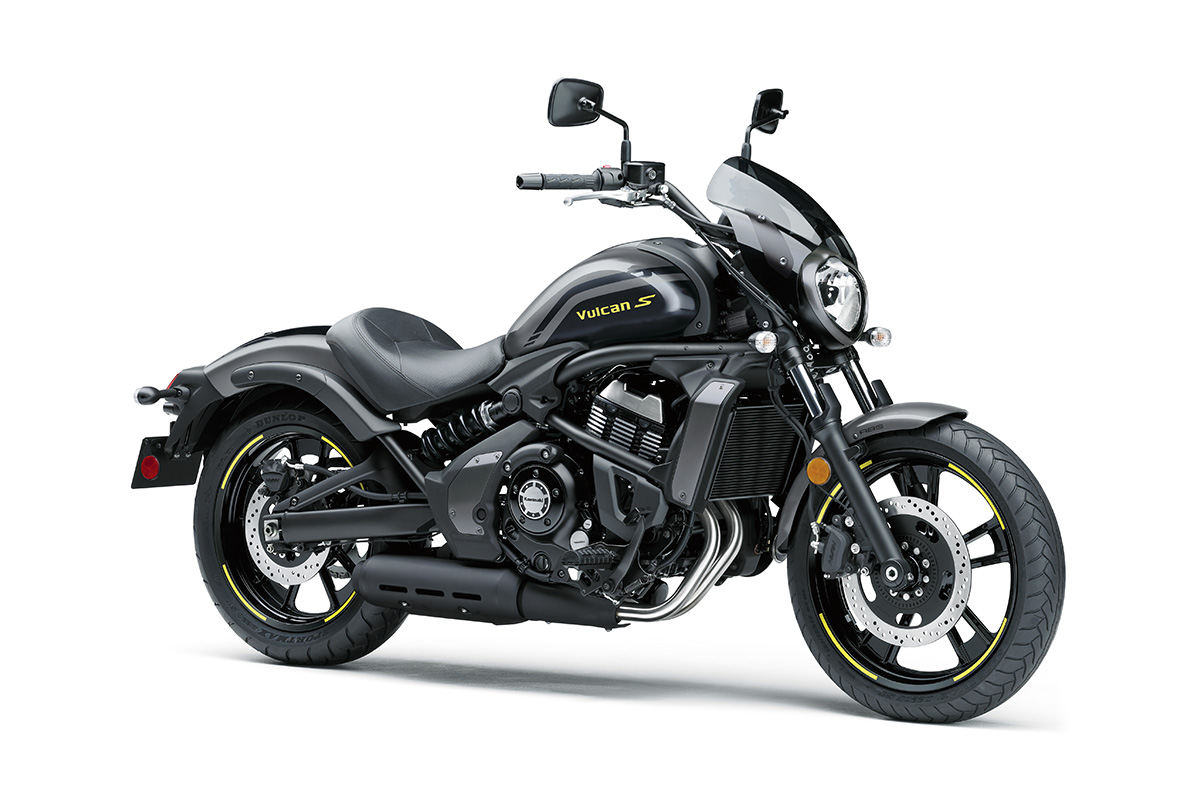

| Model | VULCAN S (LAMS) |
| Engine Type | Liquid-cooled, 4-stroke Parallel Twin |
| Displacement | 649 cm³ |
| Bore X Stroke | 83.0 x 60.0 mm |
| Compression Ratio | 10:8:1 |
| Valve System | DOHC, 8 valves |
| Fuel System | Fuel injection: 38 mm x 2 with sub-throttles (Keihin) |
| Ignition | Digital |
| Starting | Electric |
| Transmission | 6-speed, return |
| Final Drive | Sealed chain |
| Primary Reduction Ratio | 2.095 (88/42) |
| 1ST | 2.438 (39/16) |
| 2ND | 1.714 (36/21) |
| 3RD | 1.333 (32/24) |
| 4TH | 1.111 (30/27) |
| 5TH | 0.966 (28/29) |
| 6TH | 0.852 (23/27) |
| Final Drive Reduction Ratio | 3.067 (46/15) |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Perimeter, high-tensile steel |
| Wheel Travel Front | 130 mm |
| Wheel Travel Back | 80 mm |
| Tyre | |
|---|---|
| Front | 120/70 R18 M/C 59H |
| Rear | 160/60 R17 M/C 69H |
| Caster (Rake) | 31° |
| Trail | 120 mm |
| Steering Angle (Right/Left) | 35° / 35° |
| Suspension | |
|---|---|
| Front | 41 mm telescopic fork |
| Rear | Offset laydown single-shock, linkage-equipped with adjustable preload |
| Brakes | |
|---|---|
| Front | Single 300 mm discs with dual-piston caliper |
| Rear | Single 250 mm disc with single piston caliper |
| Dimensions | |
|---|---|
| L x W x H | 2,310 x 880 x 1,100 mm |
| Wheelbase | 1,575 mm |
| Ground Clearance | 130 mm |
| Seat Height | 705 mm |
| Curb Mass | 226 kg (includes full fuel tank, all fluids at optimum levels) |
| Fuel Capacity | 14 litres |
| Performance | |
|---|---|
| Max Power | 35.0 kW {48 PS} / 6,600 rpm |
| Maximum Torque | 53.0 Nm {5.4 kgm} / 5,600 rpm |
| Colour/s | Metallic Flat Spark Black |
