| Engine | |
|---|---|

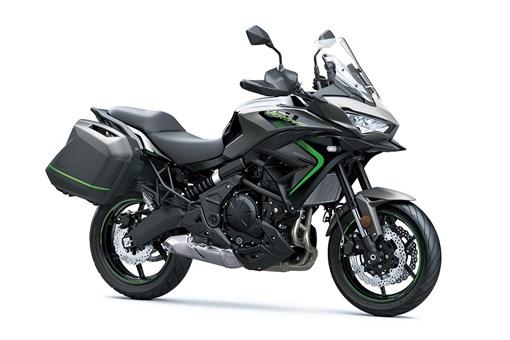

| Model | VERSYS 650L |
| Engine Type | Parallel twin, liquid cooled, 4-stroke |
| Displacement | 649 cm³ |
| Bore X Stroke | 83.0 x 60.0 mm |
| Compression Ratio | 10.8:1 |
| Valve System | DOHC, 8 valves |
| Fuel System | Digital Fuel Injected 2 X 38 mm with sub throttles |
| Ignition | Digital |
| Starting | Electric |
| Transmission | 6-speed, return |
| Final Drive | Chain |
| Primary Reduction Ratio | 2.095 (88/42) |
| 1ST | 2.438 (39/16) |
| 2ND | 1.714 (36/21) |
| 3RD | 1.333 (32/24) |
| 4TH | 1.111 (30/27) |
| 5TH | 0.966 (28/29) |
| 6TH | 0.852 (23/27) |
| Final Drive Reduction Ratio | 3.067 (46/15) |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Diamond, high-tensile steel |
| Wheel Travel Front | 150mm |
| Wheel Travel Back | 145mm |
| Tyre | |
|---|---|
| Front | 120/70ZR17M/C (58W) |
| Rear | 160/60ZR17M/C (69W) |
| Caster (Rake) | 25.0° |
| Trail | 108 mm |
| Steering Angle (Right/Left) | 35° / 35° |
| Suspension | |
|---|---|
| Front | 41 mm inverted fork with adjustable rebound damping (right-side) and adjustable spring preload (left-side) |
| Rear | Offset laydown single-shock with remote spring preload adjustability |
| Brakes | |
|---|---|
| Front | Dual semi-floating 300 mm petal discs with Dual-piston calipers |
| Rear | 250mm Petal Disc with single piston caliper |
| Dimensions | |
|---|---|
| L x W x H | 2,165 x 840 x 1,420/1,360 mm (high/low) |
| Wheelbase | 1,415 mm |
| Ground Clearance | 170 mm |
| Seat Height | 845 mm |
| Curb Mass | 218 kg |
| Fuel Capacity | 21.0 litres |
| Performance | |
|---|---|
| Max Power | 41.3 kW {56 PS} / 8,000 rpm |
| Maximum Torque | 56.0 Nm {5.7 kgfm} / 5,500 rpm |
| Colour/s | CANDY LIME GREEN / METALLIC FLAT SPARK BLACK / METALLIC SPARK BLACK |
