| Engine | |
|---|---|

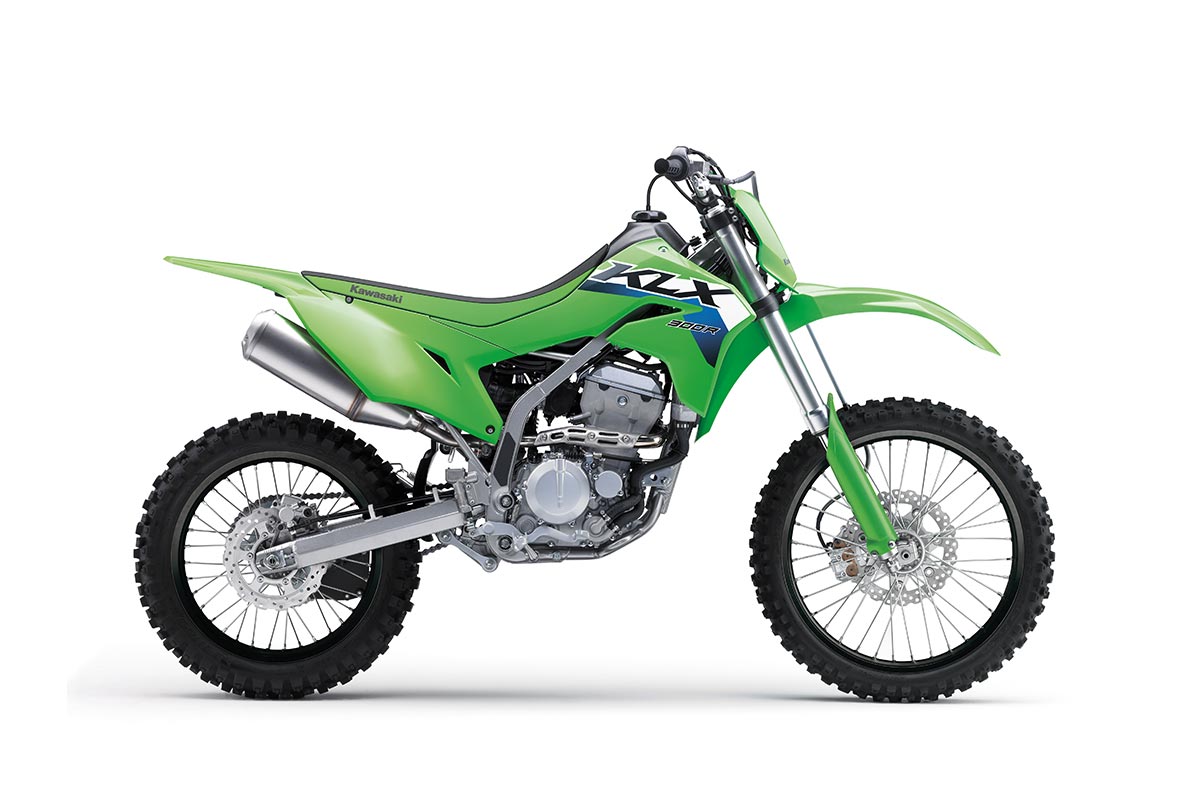

| Model | KLX300R |
| Engine Type | 4-stroke,liquid cooled, single cylinder |
| Displacement | 292 cm³ |
| Bore X Stroke | 78.0 x 61.2 mm |
| Compression Ratio | 11.1:1 |
| Valve System | DOHC 4 valve |
| Fuel System | Fuel Injection Keihin 34 x 1 |
| Ignition | Digital Advance |
| Starting | Electric |
| Transmission | 6-speed |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Perimeter, high-tensile steel |
| Wheel Travel Front | 285 mm |
| Wheel Travel Back | 285 mm |
| Tyre | |
|---|---|
| Front | 80/100-21 51M |
| Rear | 100/100-18 59M |
| Suspension | |
|---|---|
| Front | 43 mm inverted telescopic fork |
| Rear | New Uni Trak with adjustable preload |
| Brakes | |
|---|---|
| Front | Single 270 mm petal disc with twin-piston caliper |
| Rear | Single 240 mm petal disc, with a single-piston caliper |
| Dimensions | |
|---|---|
| L x W x H | 2,120 x 825 x 1,250 mm |
| Wheelbase | 1,435 mm |
| Ground Clearance | 305 mm |
| Seat Height | 925 mm |
| Curb Mass | 128 kg (includes full fuel tank, all fluids at optimum levels) |
| Fuel Capacity | 7.9 litres |
| Performance | |
|---|---|
| Colour/s | Lime Green |
| Warranty | 6 Months Unlimited Kilometres |
