| Engine | |
|---|---|
| Model | Z650 |
| Engine Type | Parallel twin, liquid cooled |
| Displacement | 649 cm³ |
| Bore X Stroke | 83.0 x 60.0 mm |
| Compression Ratio | 10.8:1 |
| Valve System | DOHC, 8 valves |
| Fuel System | Fuel injection: 36 mm x 2 with dual throttle valves |
| Ignition | Digital |
| Starting | Electric |
| Transmission | 6-speed, return |
| Final Drive | Chain |
| Primary Reduction Ratio | 2.095 (88/42) |
| 1ST | 2.438 (39/16) |
| 2ND | 1.714 (36/21) |
| 3RD | 1.333 (32/24) |
| 4TH | 1.111 (30/27) |
| 5TH | 0.966 (28/29) |
| 6TH | 0.852 (23/27) |
| Final Drive Reduction Ratio | 3.067 (46/15) |
| Clutch | Wet multi-disc, manual |
| Frame | |
|---|---|
| Type | Trellis, high-tensile steel |
| Wheel Travel Front | 125 mm |
| Wheel Travel Back | 130 mm |
| Tyre | |
|---|---|
| Front | 120/70ZR17M/C (58W) |
| Rear | 160/60ZR17M/C (69W) |
| Caster (Rake) | 24.0° |
| Trail | 100 mm |
| Steering Angle (Right/Left) | 35° / 35° |
| Suspension | |
|---|---|
| Front | 41 mm telescopic fork |
| Rear | Horizontal Back-Link, single shock with adjustable spring preload |
| Brakes | |
|---|---|
| Front | Dual 300 mm semi-floating petal discs with dual-piston callipers |
| Rear | 220mm Petal Disc with single piston calliper |
| Dimensions | |
|---|---|
| L x W x H | 2,055 x 765 x 1,065 mm |
| Wheelbase | 1,410 mm |
| Ground Clearance | 130 mm |
| Seat Height | 790 mm |
| Curb Mass | 187 kg (includes full tank of fuel) |
| Fuel Capacity | 15 litres |
| Performance | |
|---|---|
| Max Power | 37.8 kW {51 PS} / 8,000 rpm |
| Maximum Torque | 59.0 Nm {6.0 kgfm} / 6,500 rpm |

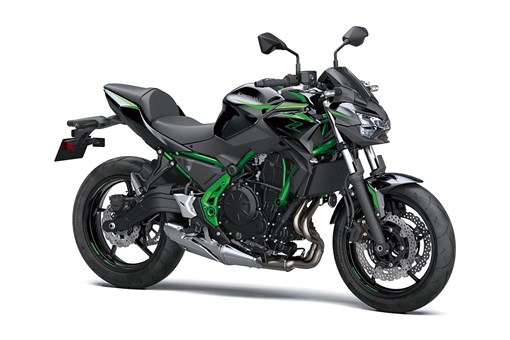

| Colour/s | CANDY LIME GREEN / METALLIC SPARK BLACK OR PEARL ROBOTIC WHITE / METALLIC MATTE GRAPHENE STEEL GRAY |
